Best Solar Design Software for Engineers and Installers
For sales-driven quoting, use a rapid proposal platform like Aurora Solar or OpenSolar. For engineering-grade bankable analysis, use PVsyst or PV*SOL. For off-grid and microgrid work, HOMER Pro and NREL SAM are the purpose-built choices. That three-way split is the core decision, and everything else follows from it.
The stakes are real. Advanced 3D modeling with LIDAR has been shown to cut post-sale change orders by as much as 99% in documented installer case studies. That kind of accuracy doesn’t come from picking the most popular tool; it comes from picking the right tool for your specific job. The evaluation checklist in the “How to choose” section below gives you a structured way to run that test before you commit.
Table of Contents
- Which solar design software fits your role?
- Short profiles: what each tool actually does well
- How to choose the right solar design software for your team
- Sales platform vs. engineering simulator: which fits your project?
- What onboarding actually looks like and what it costs
- Key Takeaways
- Why simpler, battery-aware tools matter for off-grid projects
- Westernharmonics automated microgrid design tools for off-grid projects
- Sources and further reading
Which solar design software fits your role?
| Tool | Best for | 3D/LIDAR | Shading fidelity | Battery/microgrid | Equipment DB | Integrations | Pricing | Ease of use | Output types | Data sources |
|---|---|---|---|---|---|---|---|---|---|---|
| Aurora Solar | Sales teams, U.S. residential | High-accuracy LIDAR | High | Basic storage | Broad | CRM, e-sig, permitting | Paid subscription | Low learning curve | Permit-ready, proposal visuals | LIDAR + satellite |
| HelioScope (Folsom Labs) | Commercial designers | Layout-focused | Reliable | Limited | Moderate | API, export | Paid subscription | Moderate | Engineering + proposal | TMY + satellite |
| PVsyst | Utility/commercial engineers | 3D shading | Very high | Moderate | Broad | Limited | Paid license | Steep | Bankable P50/P90 reports | TMY datasets |
| PV*SOL | C&I engineers | Full 3D | High | Yes, incl. EVs | database exceeding 30,000 PV modules | Circuit diagram export | Paid license | Moderate | Bankable reports, circuit diagrams | TMY |
| OpenSolar | Small installers, entry-level | Moderate | Moderate | Basic | Moderate | CRM, proposal | Free tier available | Low | Proposal visuals | Satellite |
| NREL SAM | Analysts, researchers | None | High (financial) | Yes | Open datasets | Export only | Free | Steep | Financial/performance models | TMY (NREL) |
| HOMER Pro | Microgrid/off-grid specialists | None | N/A | Full microgrid | Moderate | Export | Paid license | Moderate | Microgrid simulations | Load/weather data |
How to read this table: Sales reps should weight the “Integrations” and “Ease of use” columns most heavily. Engineers running bankable studies should focus on “Shading fidelity,” “Output types,” and “Data sources.” Off-grid specialists should go straight to “Battery/microgrid” and skip tools that show limited or none there.
- Sales teams: prioritize Aurora Solar or OpenSolar for speed and CRM connectivity.
- Engineers: PVsyst and PV*SOL lead on simulation depth and bankable report formats.
- Off-grid/microgrid: HOMER Pro and NREL SAM are the only tools purpose-built for storage dispatch and hybrid optimization.
Pro Tip: Before signing any contract, run one real project through the vendor’s trial. Export the permit bundle and check the shading report against a known rooftop. If the tool can’t export a complete permit package or won’t show you its weather dataset source, that’s a hard stop.
Short profiles: what each tool actually does well
Aurora Solar is the dominant choice for U.S. residential sales teams. Its LIDAR-backed roof modeling generates accurate 3D designs from an address alone, and the platform connects directly to CRM and e-signature workflows. The trade-off: pricing is subscription-based and scales with seat count, which can strain small operations.
HelioScope sits between pure sales tools and full engineering simulators. Layout speed is its strongest point, making it practical for mid-sized commercial projects where you need reliable simulation without the steep ramp of PVsyst. It lacks deep microgrid support.
PVsyst is the industry reference for utility and large commercial feasibility. Lenders and independent engineers accept its P50/P90 reports as bankable. The learning curve is real, and the interface is dated, but no other tool matches its simulation credibility at scale.
PV*SOL covers the C&I engineering gap with a database exceeding 30,000 PV modules and automatic circuit-diagram generation. It handles battery storage, EV integration, and heat pumps in the same model. Engineers who need a complete deliverable package, not just a yield number, will find it thorough. A free online version handles quick feasibility checks.
OpenSolar removes the cost barrier entirely with a free tier that includes design and proposal features. It’s the right starting point for small installers or teams testing a new market. Shading accuracy and equipment database depth don’t match the paid platforms, but for entry-level residential work, the trade-off is acceptable.
NREL SAM is a free, research-grade tool from the National Renewable Energy Laboratory. It excels at financial and performance modeling for U.S. projects, with open TMY datasets built in. It has no 3D layout capability, so it works best as a modeling layer on top of a layout tool, not as a standalone design platform.
HOMER Pro is the only tool on this list built specifically for microgrid economics. It models storage dispatch, generator cycling, and hybrid system optimization in ways that residential-first platforms simply don’t support. Off-grid barn installations, remote agricultural sites, and rural infrastructure projects belong here.
Pro Tip: Validate shading accuracy by running one known rooftop through the tool and comparing its output to a measured baseline. A 5–10% variance is typical; anything beyond that signals a dataset or algorithm problem worth investigating before you commit.
How to choose the right solar design software for your team
Start with your primary outcome, not the feature list. That single decision narrows the field fast.
- Define your primary output. Sales conversion needs proposal visuals and permit-ready plans. Engineering deliverables need bankable P50/P90 reports. Microgrid sizing needs storage dispatch models.
- Verify dataset provenance. Ask the vendor: does the tool use TMY data, satellite imagery, or LIDAR? Who supplies it, and how current is it? Outdated or low-resolution imagery causes measurement errors that show up as expensive post-sale site visits.
- Check the equipment database. If the tool doesn’t natively carry the modules and inverters you install, you’ll spend time on manual workarounds. Confirm your standard hardware is in the database before the trial ends.
- Test integrations. Run a full export: permit bundle, BOM, and CRM push. If any step requires manual re-entry, that’s an operational cost the vendor won’t mention in the demo.
- Confirm trial limits and export rights. Some free tiers restrict exports or watermark outputs. Know what you can and can’t do before you build a workflow around it.
- Ask about support SLAs. For engineering tools with steep learning curves, training quality and response time matter more than the feature count.
Red flags: No trial account available. Closed equipment database with no import option. No documentation of weather dataset source or vintage.
Pro Tip: Run two projects in parallel during any trial: one simple residential job and one with complex shading. The gap between those results tells you more about the tool’s real-world accuracy than any vendor demo.

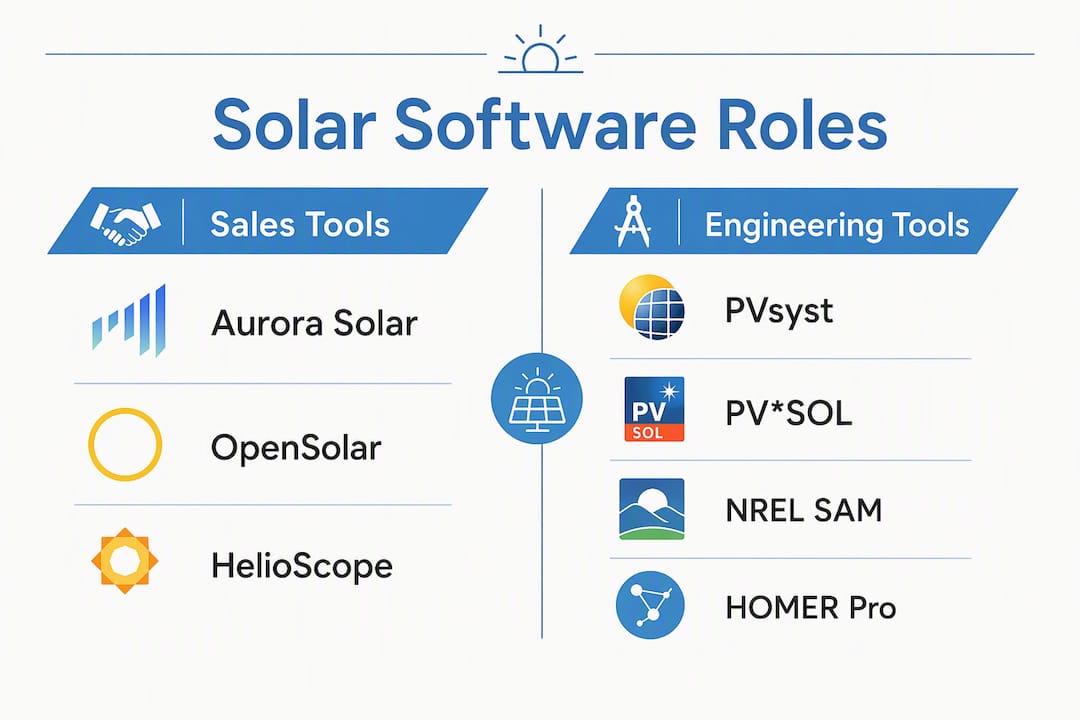

Sales platform vs. engineering simulator: which fits your project?
The two dominant platform shapes serve genuinely different jobs. Sales platforms are built for speed and customer-facing output. Engineering simulators are built for accuracy and lender acceptance.
| Project type | Scale | Recommended output | Best tool family |
|---|---|---|---|
| Residential quoting | 1+ modules | Proposal visuals, permit-ready plans | Sales platform (Aurora, OpenSolar) |
| C&I rooftop | — | Bankable yield report, circuit diagrams | Engineering simulator (PV*SOL, PVsyst) |
| Ground-mounted commercial | — | P50/P90 feasibility, financial model | PVsyst + NREL SAM |
| Off-grid/microgrid | Any size | Storage dispatch model, load analysis | HOMER Pro, NREL SAM |
- HOMER Pro and NREL SAM don’t replace layout tools; they layer on top of them for storage and financial modeling.
- For hybrid projects that need both a permit-ready layout and a bankable microgrid model, teams often run two tools in sequence.
What onboarding actually looks like and what it costs
Pricing across the category ranges from free tiers to per-seat annual subscriptions and enterprise licensing. OpenSolar’s core design features are free. PV*SOL and PVsyst run annual named-user licenses. Aurora Solar and HelioScope use per-seat subscription models. NREL SAM and HOMER Pro have free and paid tiers respectively.
Realistic onboarding timeline:
- Pilot phase (1–2 weeks): Run 2–3 real projects, test exports, and validate shading against known sites.
- Team training and standardization (2–6 weeks): Template setup, equipment database mapping, CRM and permitting integration tests.
- Full rollout (1–3 months): Depends on team size, integration complexity, and whether you’re replacing an existing tool or starting fresh.
The biggest hidden cost is integration work. CRM pushes, e-signature connections, and permitting export configurations rarely work out of the box. Budget time for that, not just the license fee.
Key Takeaways
The right solar design software depends entirely on your primary job: sales teams, engineers, and off-grid specialists each need a different tool family.
| Point | Details |
|---|---|
| Match tool to role | Sales teams use Aurora Solar or OpenSolar; engineers use PVsyst or PV*SOL; off-grid work needs HOMER Pro or NREL SAM. |
| LIDAR accuracy pays off | LIDAR-backed 3D modeling has been shown to reduce post-sale change orders by as much as 99% in documented case studies. |
| Top three evaluation criteria | Verify dataset provenance (TMY/LIDAR source), confirm your hardware is in the equipment database, and test a full permit export before committing. |
| Off-grid needs specialized tools | Residential-first platforms don’t model storage dispatch or load profiles; HOMER Pro and NREL SAM are purpose-built for this. |
| Westernharmonics offers automated microgrid design tools built for rural and off-grid projects, complementing mainstream solar software for hardware sizing and system planning. |
Why simpler, battery-aware tools matter for off-grid projects
Most solar design software is built around grid-tied residential and commercial projects. That’s fine for most of the market, but it creates a real gap for off-grid and rural work.
When we design systems for barns, greenhouses, and remote agricultural sites, the questions that matter most aren’t about utility interconnection or net metering rates. They’re about load profiles: what runs at night, what the battery needs to carry through a cloudy week, and whether the hardware can handle dust, heat, and vibration without failing. A sales-focused platform optimized for fast residential proposals doesn’t model any of that well.
The tools that actually serve off-grid work, HOMER Pro for microgrid optimization and NREL SAM for financial and performance modeling, treat storage as a first-class variable, not an add-on. That’s the right architecture for rural infrastructure. Hardware realities drive software selection here, not the other way around.
Westernharmonics automated microgrid design tools for off-grid projects
If your projects involve barns, greenhouses, remote workshops, or any site where the grid is unreliable or absent, mainstream solar design software will leave gaps in your planning. Westernharmonics builds automated microgrid design tools specifically for these environments, answering load sizing questions, generating system configurations, and making off-grid planning accessible without a steep engineering learning curve.
The tools complement what you already use for grid-tied layout and simulation. Where Aurora Solar or PVsyst stops, Westernharmonics picks up: battery sizing, DC micro-power configuration, and real-world load modeling for agricultural and rural infrastructure. Visit Westernharmonics to see the microgrid design tools and request a pilot for your next off-grid project.
